d&b CCL12 Loudspeaker

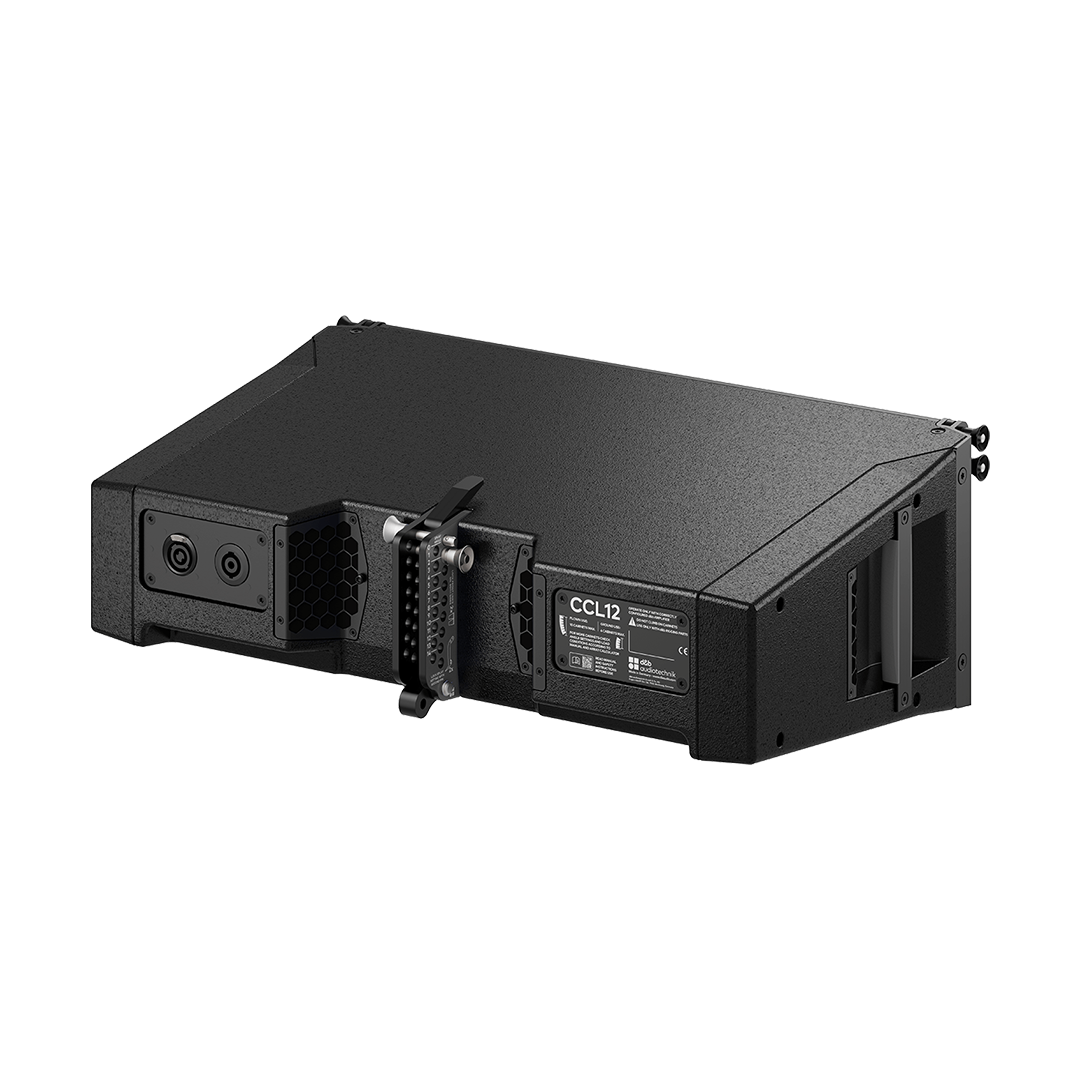

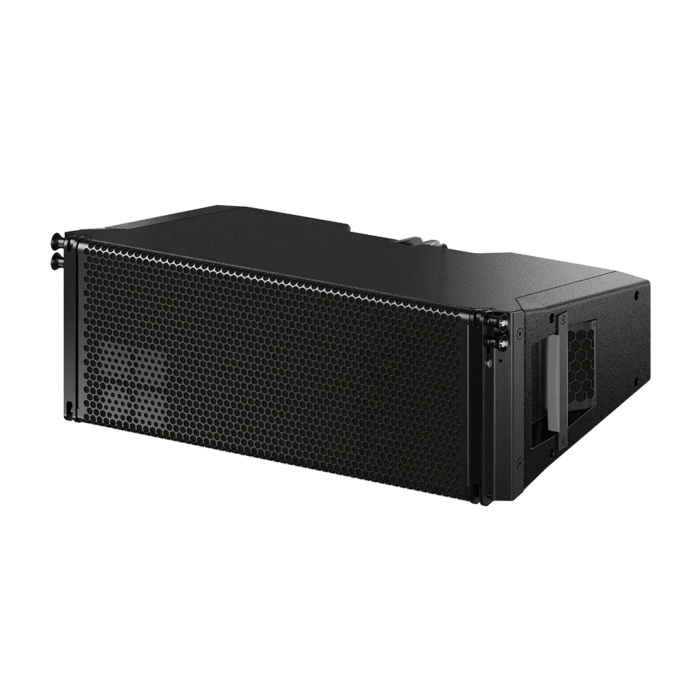

The CCL12 is a compact cardioid line array loudspeaker designed for small to medium-scale sound reinforcement. Featuring two 7″ front-firing LF drivers, two 5″ side-firing LF drivers, and two 1.75″ HF compression drivers, it delivers consistent 120° horizontal dispersion across its 62 Hz to 18 kHz frequency range. With a maximum SPL of 136 dB and a lightweight design (17.6 kg), the CCL12 offers flexible deployment options, including flying up to 24 cabinets in vertical arrays. Its passive crossover network and compatibility with d&b amplifiers like the D40, D80, and D90 make it a versatile choice for both mobile and installed applications.
If you’d like to speak to someone at ATC about AV rental or event production, give us a call on 01827 301010 or 0207 940 5353.
Coming Soon
Spec Sheet: CCL12 Spec Sheet
