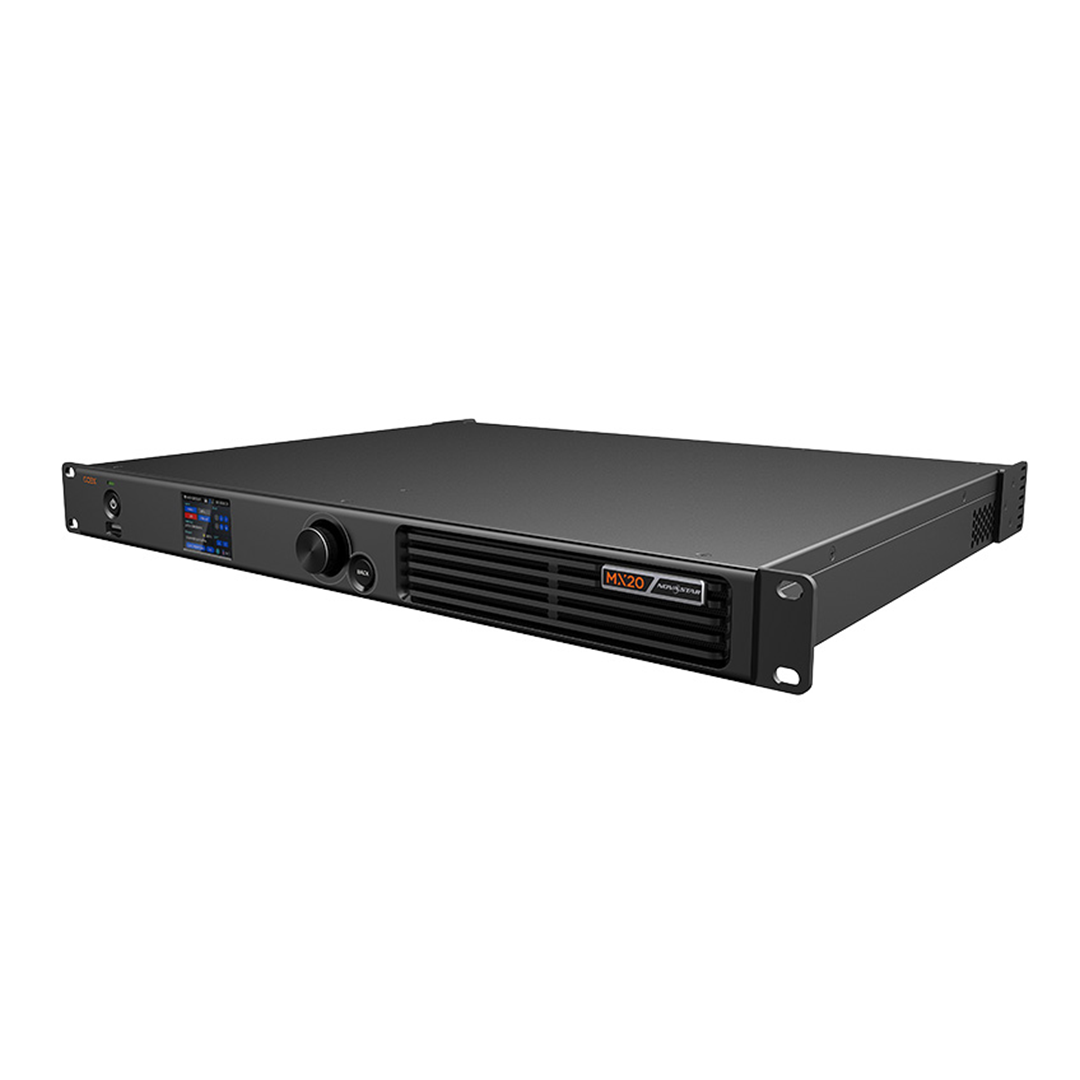

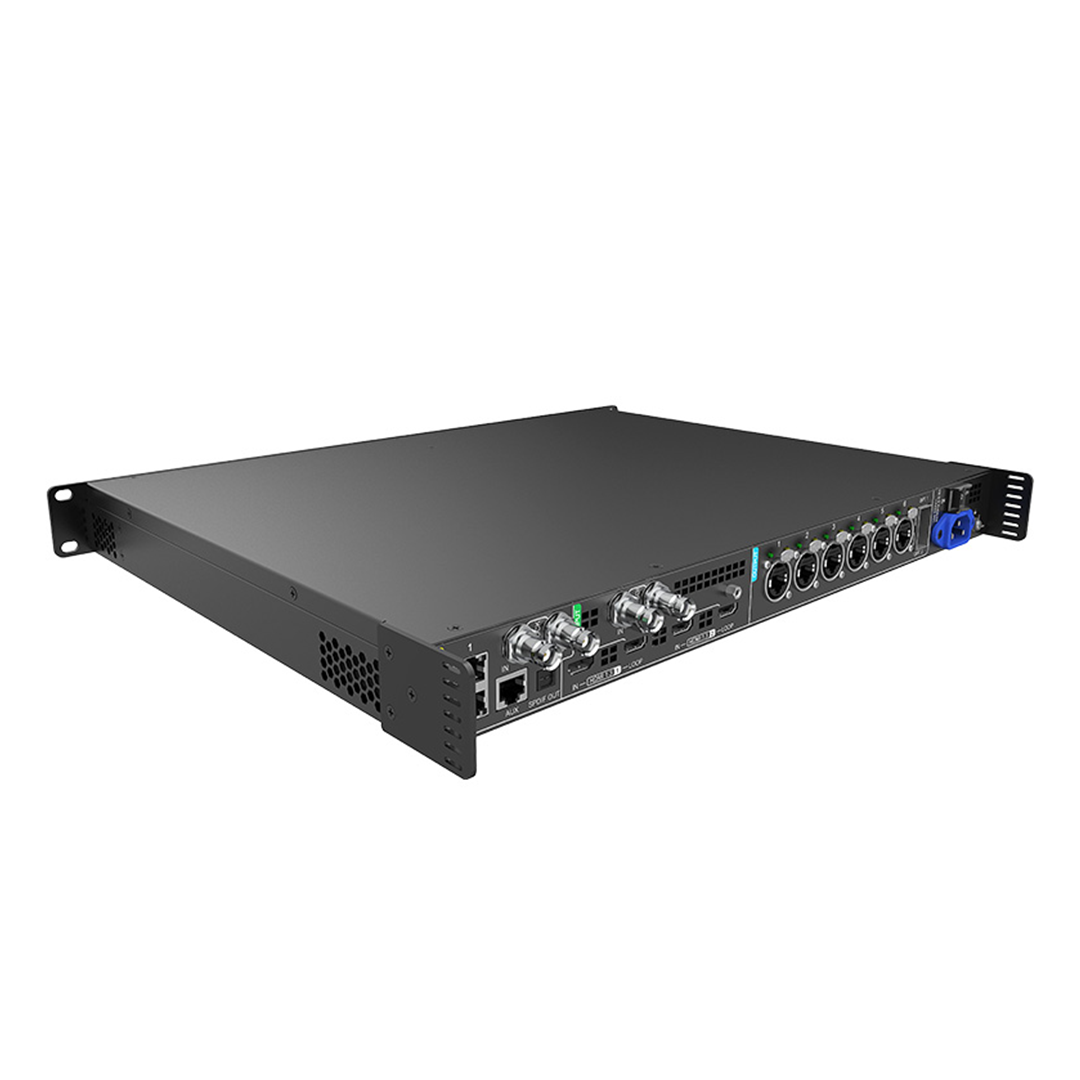

NovaStar MX20 LED Processor
The NovaStar MX20 is a high-performance integrated video processing and control unit from the COEX series, designed to streamline complex LED display workflows. It combines powerful video processing and output control in one device, supporting dual HDMI 1.3 inputs (up to 1920×1200@60 Hz), a 3G-SDI input compatible with SD, HD and 3G, and dual HDMI + 3G-SDI loop outputs for seamless signal chaining. With six RJ45 LED-Out ports (supporting up to ~659,000 pixels at 8-bit 60 Hz or ~494,000 at 10-bit 60 Hz) plus two 10G optical outputs, it provides robust output flexibility. Additional features include genlock support, three layers of composition, 14-channel color correction, full grayscale calibration, ultra-low latency performance and integrated cascading via an embedded network switch. Housed in a rack-friendly form factor and powered with universal 100–240 V input, the MX20 suits demanding LED installations needing precision, reliability and streamlined control. Integrated with NovaStar’s Vision Management Platform (VMP) software, the MX20’s intuitive control and advanced capabilities make it ideal for live events, staged environments, broadcast set design or any high-end LED display application.
If you’d like to speak to someone at ATC about AV rental or event production, give us a call on 01827 301010 or 0207 940 5353.
Day Rate: £200 Week Rate: £600
Spec Sheet:
